Aluminium Casement Projection Window

Send Inquiry


Casement windows are superb products for both commercial & residential applications and are attractive & extremely strong.

Casement windows features a sleek and modern form.

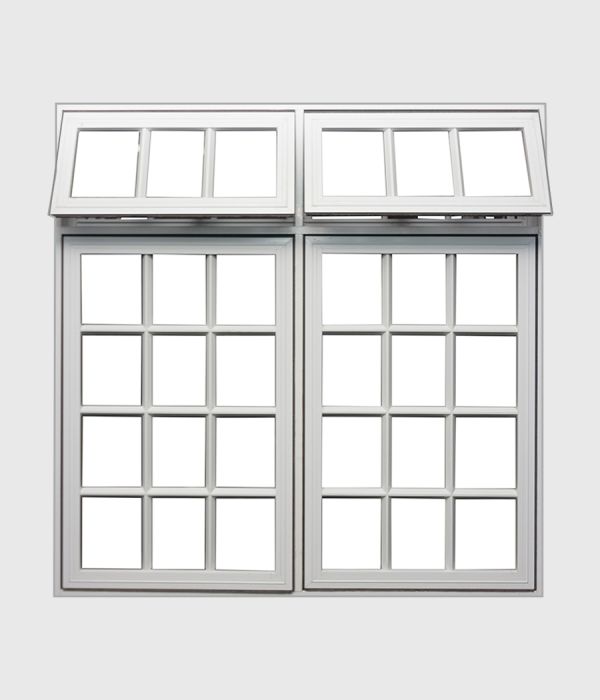

They are hinged on the side and swing out, while projection windows are hinged at the top and swing out.

The projection window tends to be smaller in size and is often greater in width than it is in height.

They are well suited for any area where the elements are at their toughest and allows for maximum ventilation into the home or business.

The omission of railings and interior screens make these windows perfect for installation in any area of the home or business.

Our Casement Projection windows are secured with cam style handles.


Customized colours are available upon request.
All painted finishes are applied using powder coated finish, a high quality, durable and attractive finish for environmental changes.

Glass: 5mm Float Glass or 1/4" laminated glass.
Material: Aluminium thickness 4 3/4''
Frame and panel Aluminium extrusions are 6063 T5 aluminium alloy. Hardware and all mechanical fastening devices are compatible with aluminium for sufficient strength and durability.

Material: Aluminium

Sizes: 36"H x 18" W to 72" H x 72" W | Customized sizes available upon request.

Customized Style: 1, 2 or 3 Projection vents over 1, 2, or 3 casement vents

  • Removable Insect Screen
  • Security bars can be requested.
  • Glazed with 5mm Grey float or 1/4" laminated glass
  • 3'' Framing
