Aluminium Projection Window

Send Inquiry


The Aluminium Projection Windows are designed to withstand the harshest weather conditions and are made to the highest standard.

This window is made with high impact, rigid aluminium which ensures beauty and performance for many years to come.

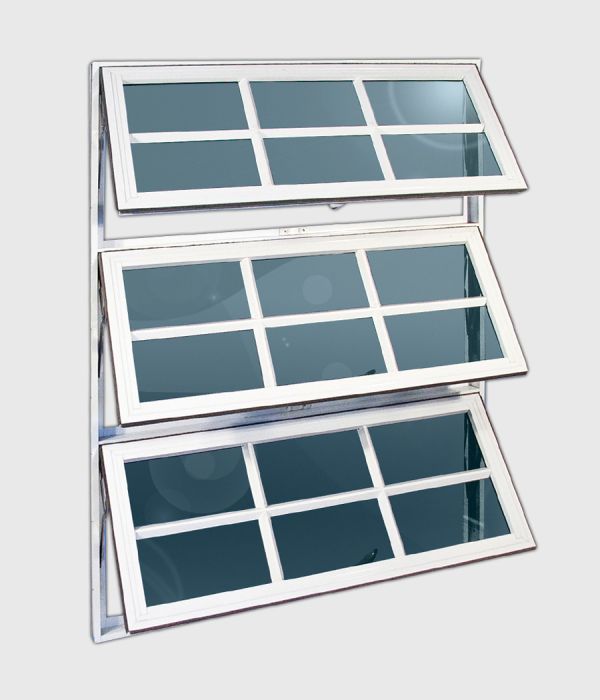

Projection windows open to a full 90° for easy cleaning from the inside and are ideal for controlling wind and rain.  They are perfect for use in combination with other window styles and shapes.

The vent of projection windows are hinged at the top and opens upward. This allows air to flow into the home or office while preventing rain from entering. This style of window tends to be smaller in size and is often greater in width than it is in height.


Customized colours are available upon request.
All painted finishes are applied using powder coated finish, a high quality, durable and attractive finish for environmental changes.

Glass: 5mm Float Glass or 1/4" laminated Glass

Material: Aluminium thickness 4 3/4''
Frame and panel Aluminium extrusions are 6063 T5 aluminium alloy. Hardware and all mechanical fastening devices are compatible with aluminium for sufficient strength and durability.

Sizes: 24"W x 18" H to 72''W x 60"H | Customized sizes are available upon request.


  • 3" framing
  • Removable Insect screens
  • Open to give 100% ventilation
  • Security bars available upon request.


  • Colonial design
  • no design

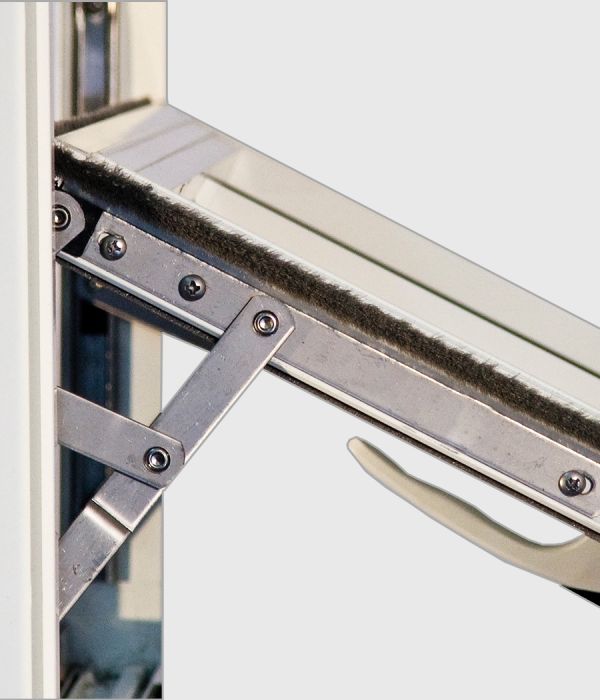

  • Stainless steel hinges
  • Cam handles
