Aluminium Casement Window with Arch

Send Inquiry


If you are looking for a window that offers ventilation, a casement window is a good choice. Casement windows are commonly used in places where maximum ventilation is desired, such as a dining rooms, study, master suites or lounge areas. They can also be found over an obstruction like a kitchen sink to make opening and closing easier.

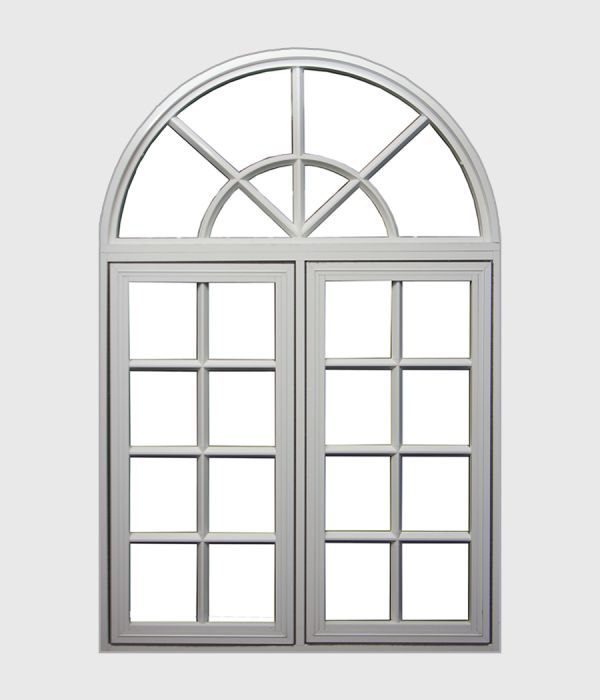

In an Aluminium Casement Window with Arch, the bottom half of the window is rectangular while the top is an arch or half-circle.

Arch shaped windows brings softness to a room and juxtaposes the straight corners of rectangular or square windows and walls for a contrasting effect.

Casement with Arch windows creates a relaxing and dramatic effect to open spaces.


Customized colours are available upon request.

All painted finishes are applied using powder coated finish, a high quality, durable and attractive finish for environmental changes.

Material: Aluminium thickness 4 3/4''

Frame and panel Aluminium extrusions are 6063 T5 aluminium alloy. Hardware and all mechanical fastening devices are compatible with aluminium for sufficient strength and durability.

Sizes: 20" W x 48" H to 72" W x 60" H | Custom sizes are available upon request.


  • 3" framing
  • Glazed with 5mm Float or 1/4 inch Laminated Glass
  • Fixed Arched skylight with double casement windows that open to a full 90° for easy cleaning from inside.
  • Cam handles
  • Removable Insect screens
  • Security Bars available upon request


  • Colonial design
  • no design
